KANO

Alkaline water bottle

Project Targets: Design a unisex alkaline water bottle with a distinctive look, clean aesthetics, and an easy refill mechanism for everyday use.

My Role: Complete design of the product from concept to final production. Choosing the brand name and designing the brand identity. CMF design and arranging the partner for supplying the engineering and series production.

Tools: Sketching | Photoshop | Rhino 3D | Keyshot | InDesign | Illustrator | Vizcom Ai

Timing: 5 months (From project brief to production) - 2020

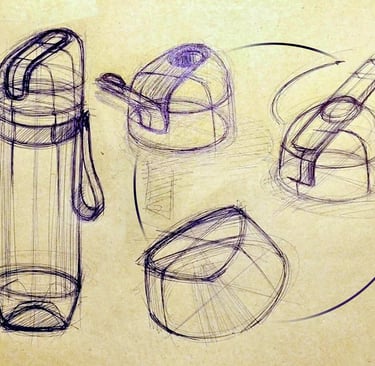

visual-brainstorming-sketches-defining-the-design-direction-for-the-alkaline-water-bottle-designed-b

visual-brainstorming-sketches-defining-the-design-direction-for-the-alkaline-water-bottle-designed-b

Sketch Salad

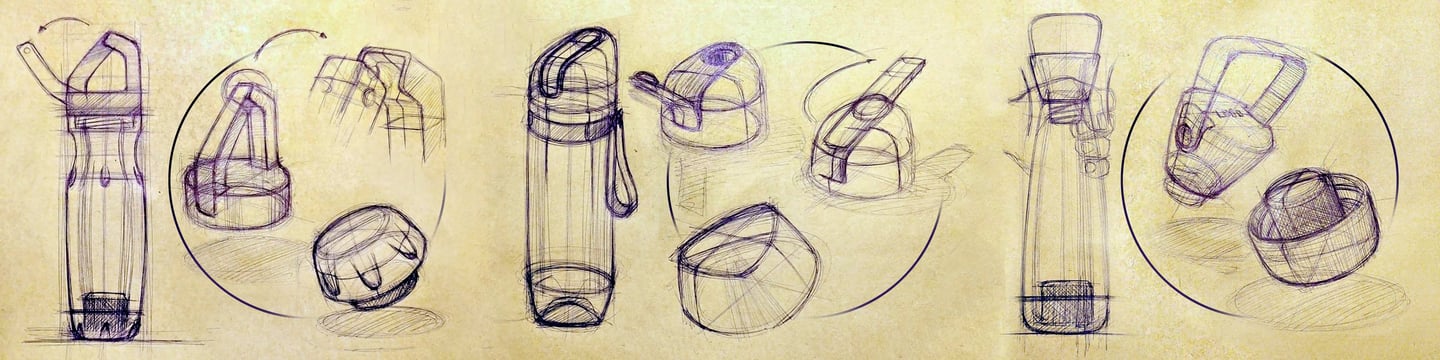

Early hand sketches - pen on craft paper - exploring design direction for the alkaline water bottle.

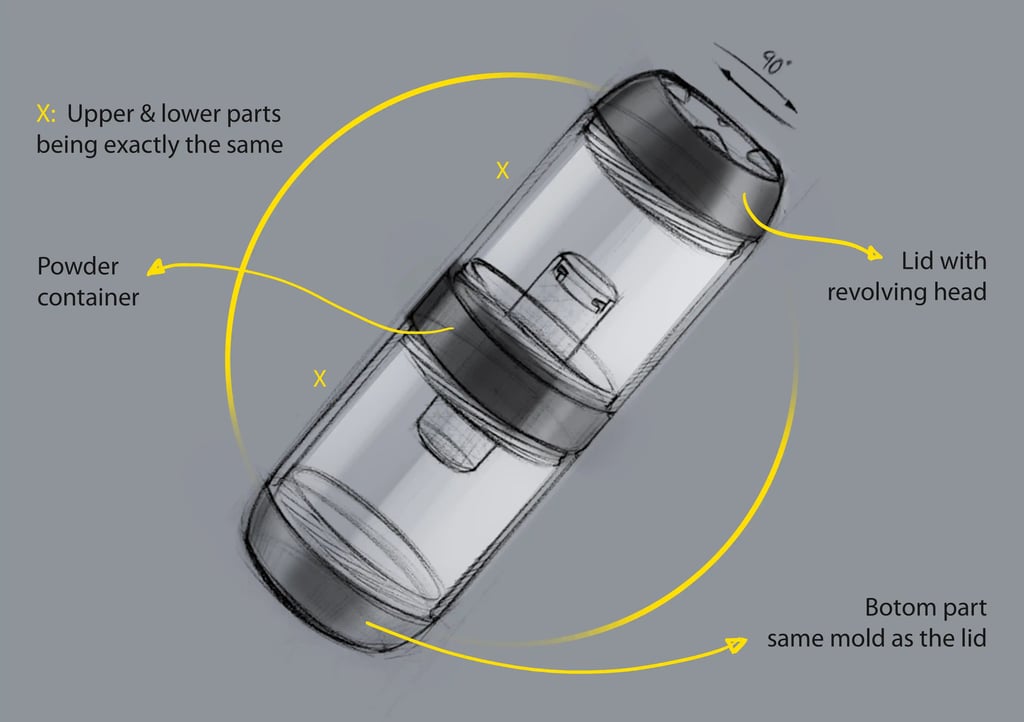

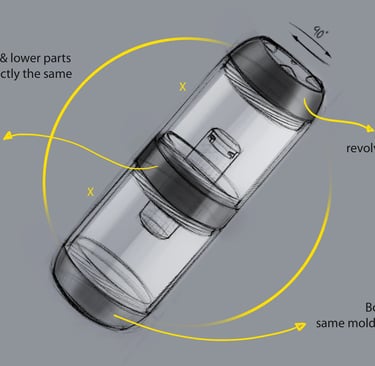

freehand-concept-sketches-exploring-multiple-design-proposals-for-a-unisex-alkaline-water-bottle-des

freehand-concept-sketches-exploring-multiple-design-proposals-for-a-unisex-alkaline-water-bottle-des

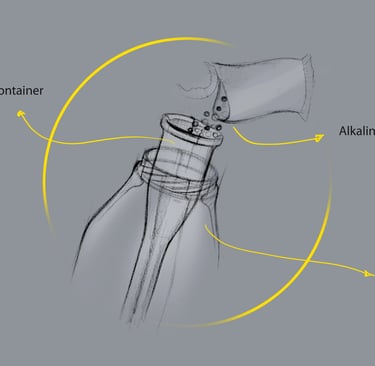

Direction 1 - Central alkaline container

Initial concept proposals

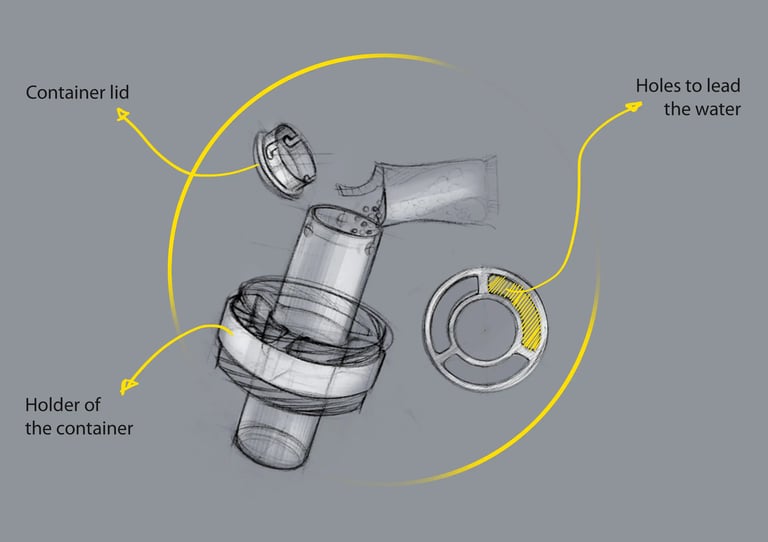

early-ideation-sketches-showing-form-proportions-and-usability-studies-for-the-alkaline-water-bottle

early-ideation-sketches-showing-form-proportions-and-usability-studies-for-the-alkaline-water-bottle

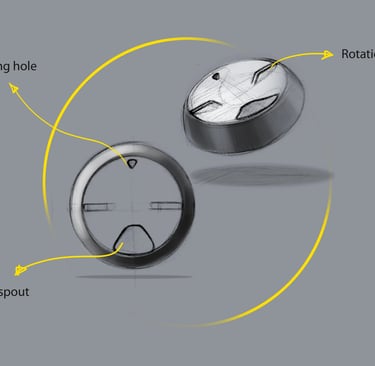

hand-drawn-design-proposals-investigating-silhouette-grip-and-refill-mechanism-concepts-designed-by-

hand-drawn-design-proposals-investigating-silhouette-grip-and-refill-mechanism-concepts-designed-by-

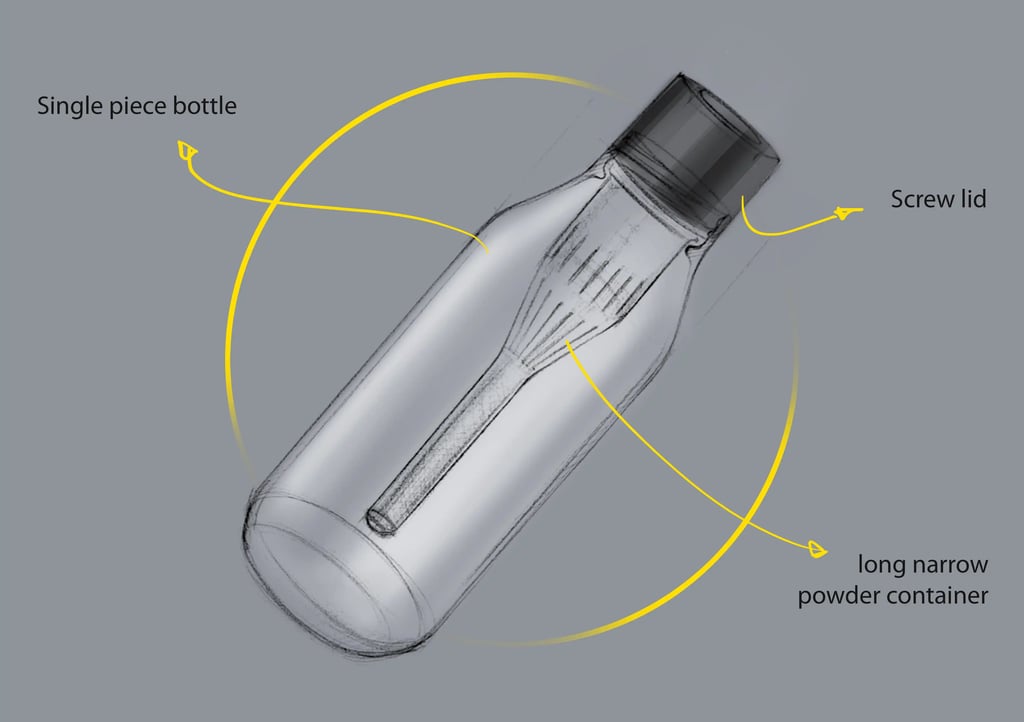

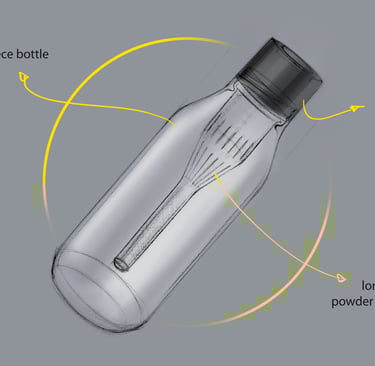

exploratory-hand-sketches-testing-multiple-form-directions-for-a-unisex-alkaline-water-bottle-desige

exploratory-hand-sketches-testing-multiple-form-directions-for-a-unisex-alkaline-water-bottle-desige

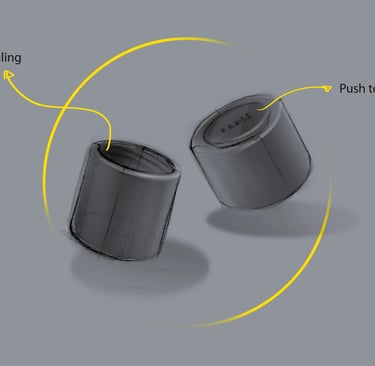

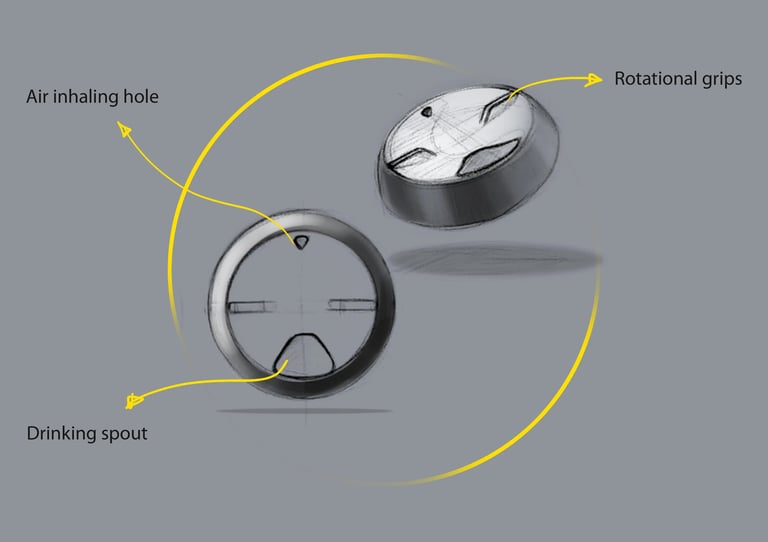

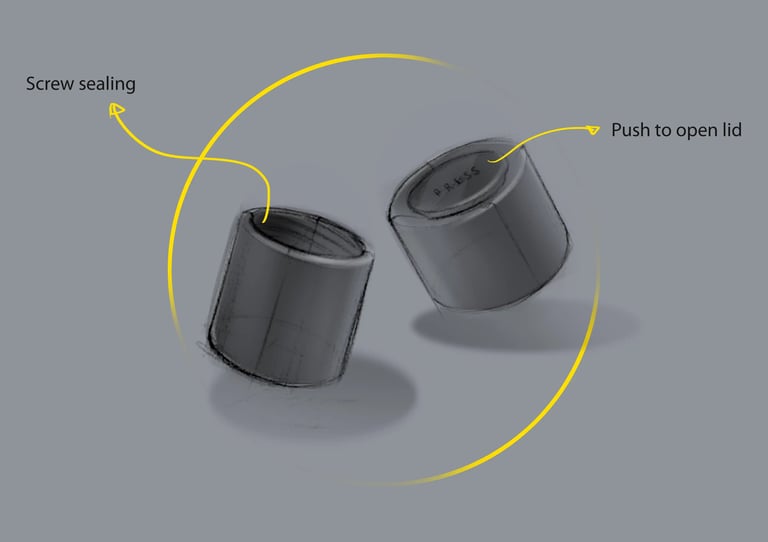

Direction 2 - Top reffiling mechanism + Push to open lid

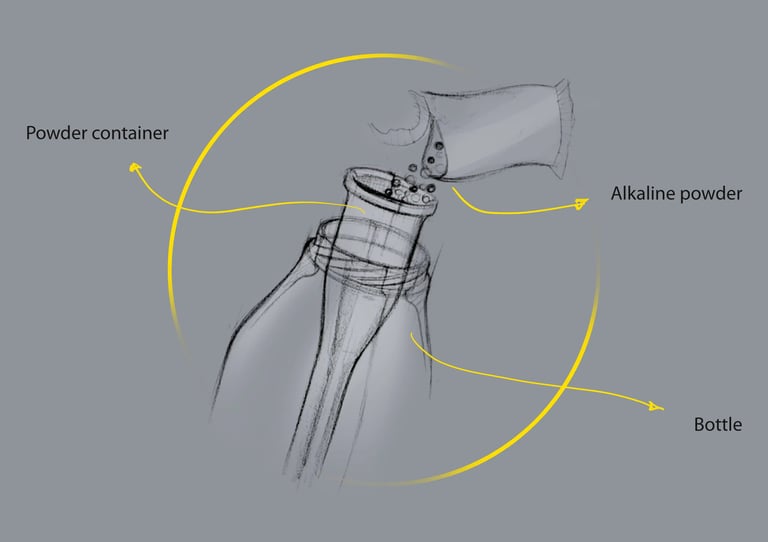

conceptual-sketch-studies-focusing-on-proportion-grip-ergonomics-and-visual-identity-designed-by-koo

conceptual-sketch-studies-focusing-on-proportion-grip-ergonomics-and-visual-identity-designed-by-koo

early-stage-design-sketches-mapping-out-alternative-bottle-architectures-and-mechanisms-designed-by-

early-stage-design-sketches-mapping-out-alternative-bottle-architectures-and-mechanisms-designed-by-

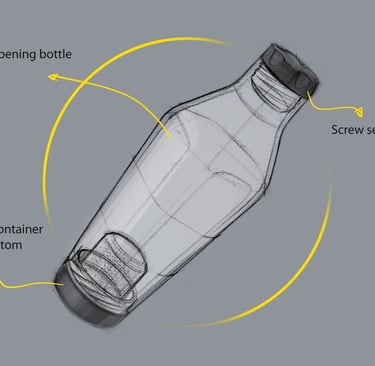

rapid-ideation-sketches-capturing-initial-thoughts-on-usability-and-everyday-interaction-designed-by

rapid-ideation-sketches-capturing-initial-thoughts-on-usability-and-everyday-interaction-designed-by

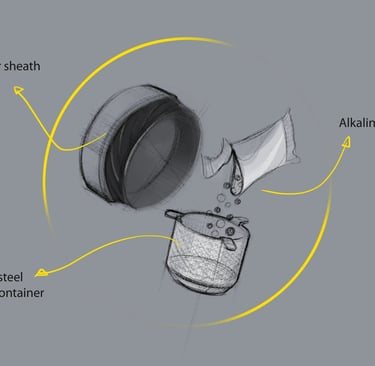

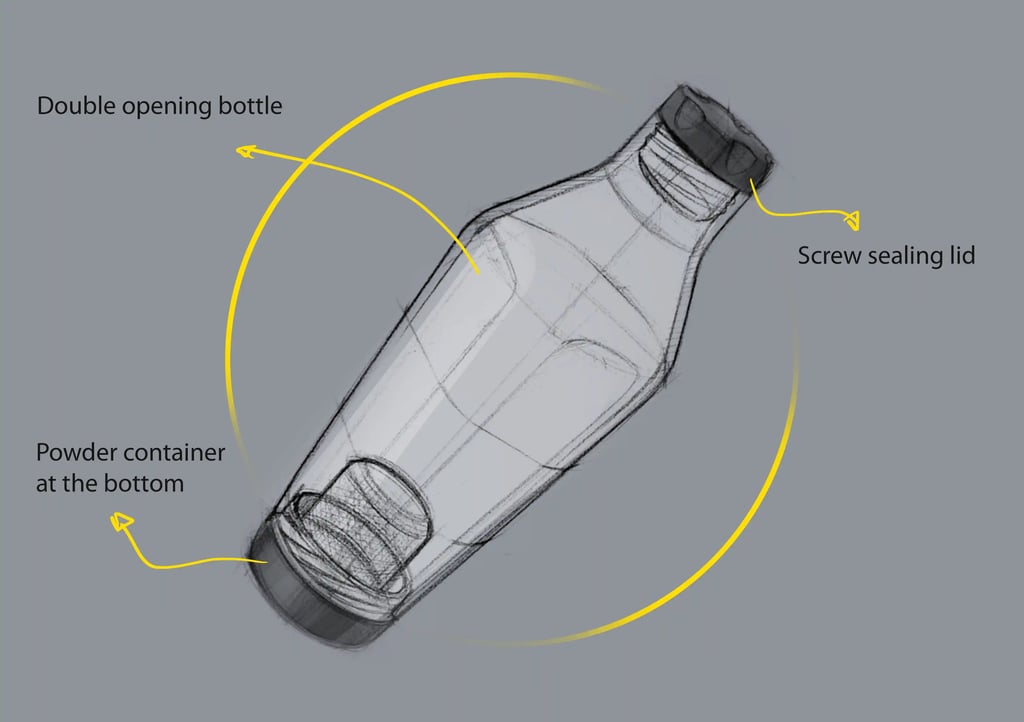

Direction 3 - Double openings, alkaline in the bottom

sketch-development-phase-comparing-different-design-concepts-for-a-modern-water-bottle-designed-by-k

sketch-development-phase-comparing-different-design-concepts-for-a-modern-water-bottle-designed-by-k

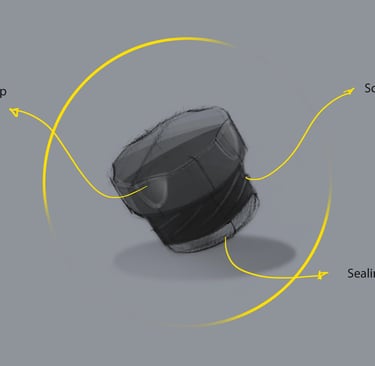

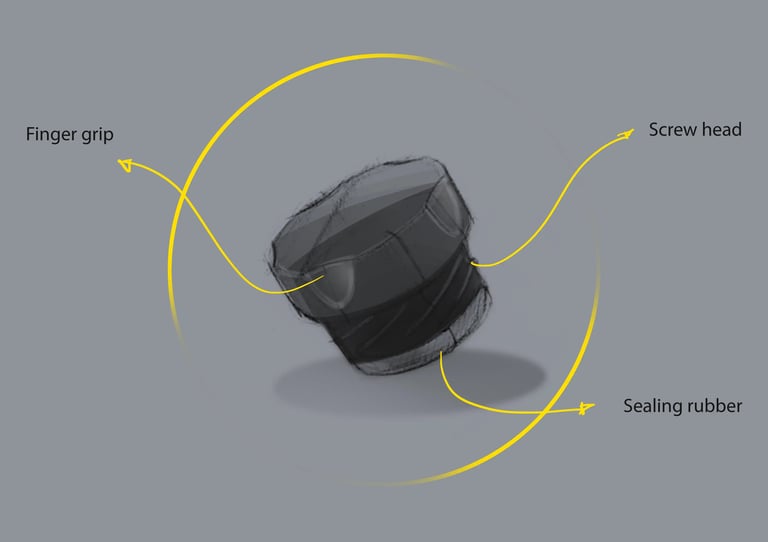

freehand-sketch-exploration-of-cap-design-refill-logic-and-overall-silhouette-designed-by-koorosh-sh

freehand-sketch-exploration-of-cap-design-refill-logic-and-overall-silhouette-designed-by-koorosh-sh

3d-cad-model-of-the-unisex-alkaline-water-bottle-defining-geometry-and-functional-structure-designed

3d-cad-model-of-the-unisex-alkaline-water-bottle-defining-geometry-and-functional-structure-designed

digital-3d-modeling-phase-focusing-on-form-accuracy-and-component-integration-designed-by-koorosh-sh

digital-3d-modeling-phase-focusing-on-form-accuracy-and-component-integration-designed-by-koorosh-sh

3d-model-showing-bottle-proportions-and-internal-refill-mechanism-layout-designed-by-koorosh-shojaei

3d-model-showing-bottle-proportions-and-internal-refill-mechanism-layout-designed-by-koorosh-shojaei

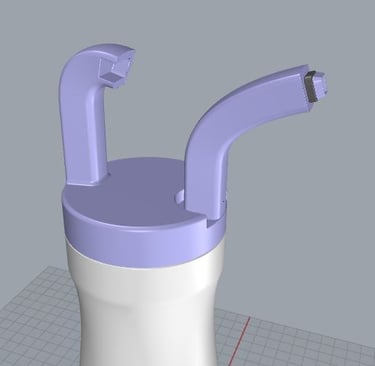

mid-development-3d-model-translating-sketch-concepts-into-manufacturable-geometry-designed-by-kooros

mid-development-3d-model-translating-sketch-concepts-into-manufacturable-geometry-designed-by-kooros

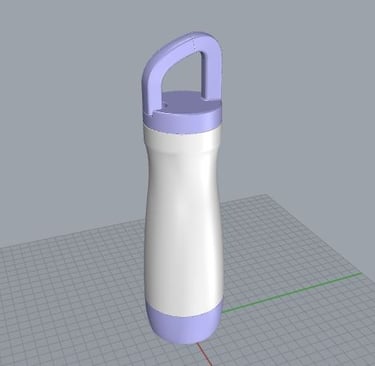

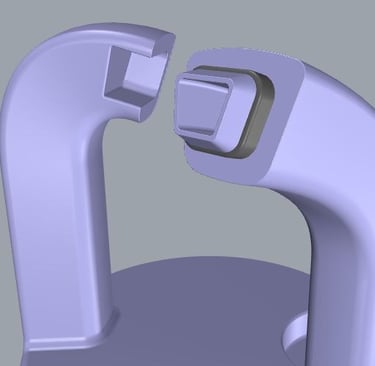

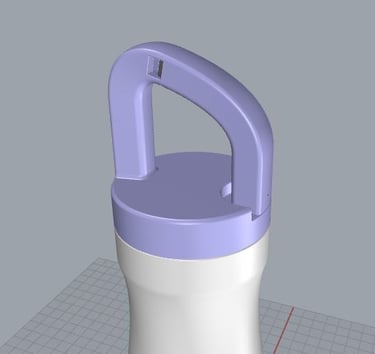

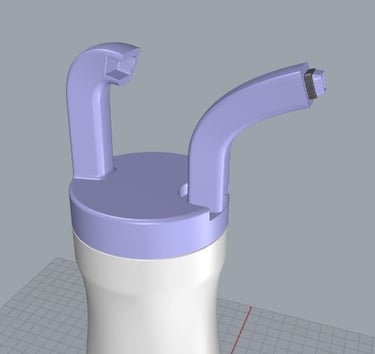

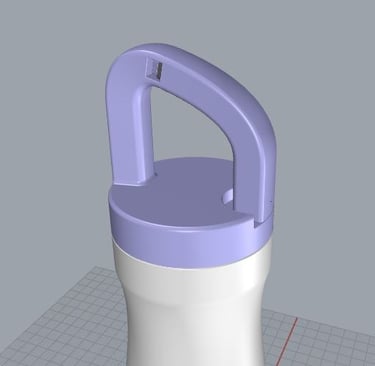

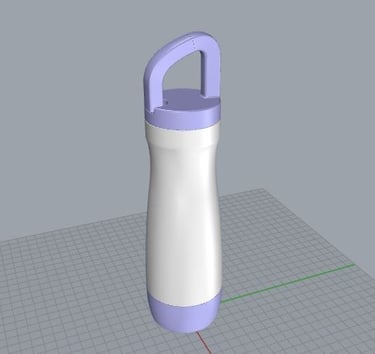

First phase of 3D modeling in Rhino

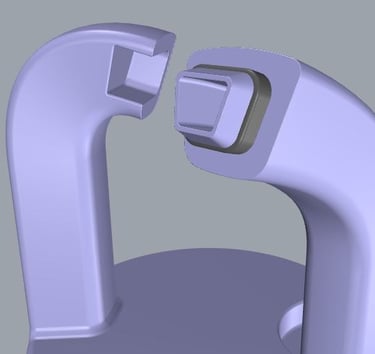

Manufacturing level 3D modeling & Design

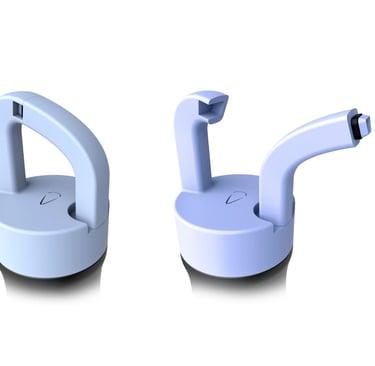

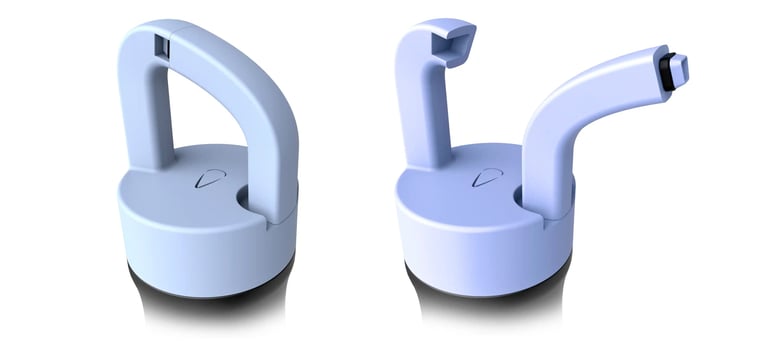

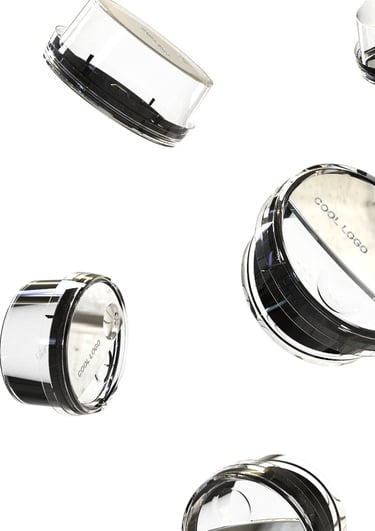

close-up-refinement-of-cap-grip-and-refill-mechanism-details-designed-by-koorosh-shojaei

close-up-refinement-of-cap-grip-and-refill-mechanism-details-designed-by-koorosh-shojaei

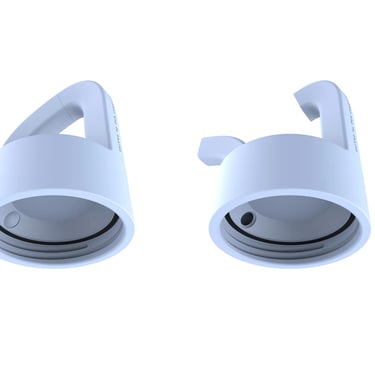

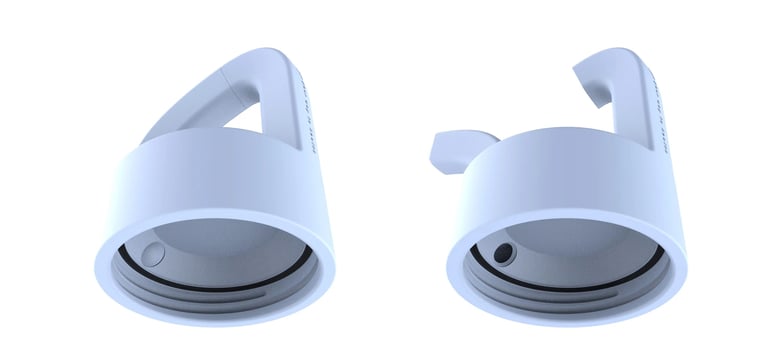

close-up-refinement-of-the-lid-from-inside-grip-and-refill-mechanism-details-designed-by-koorosh-sho

close-up-refinement-of-the-lid-from-inside-grip-and-refill-mechanism-details-designed-by-koorosh-sho

design-refinement-phase-focusing-on-detailing-ergonomics-and-functional-interfaces-designed-by-kooro

design-refinement-phase-focusing-on-detailing-ergonomics-and-functional-interfaces-designed-by-kooro

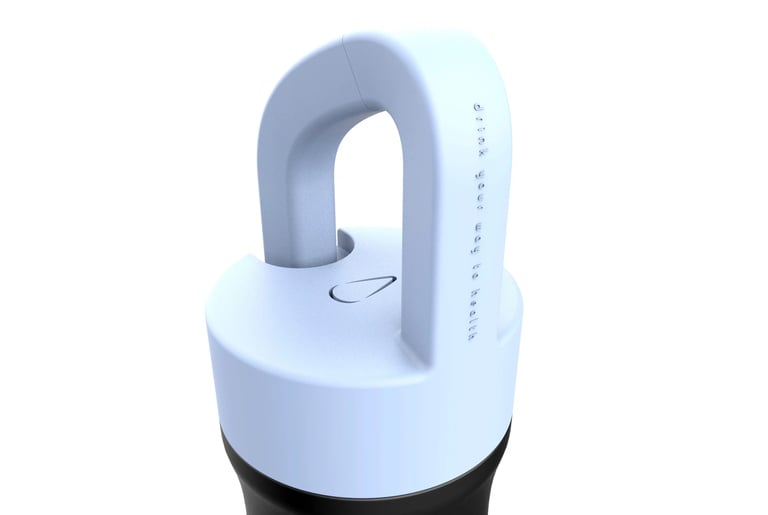

high-detail-development-stage-optimizing-form-and-functional-precision-designed-by-koorosh-shojaei

high-detail-development-stage-optimizing-form-and-functional-precision-designed-by-koorosh-shojaei

final-design-adjustments-improving-usability-assembly-logic-and-visual-balance-designed-by-koorosh-s

final-design-adjustments-improving-usability-assembly-logic-and-visual-balance-designed-by-koorosh-s

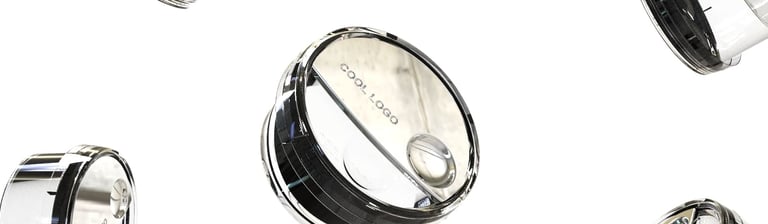

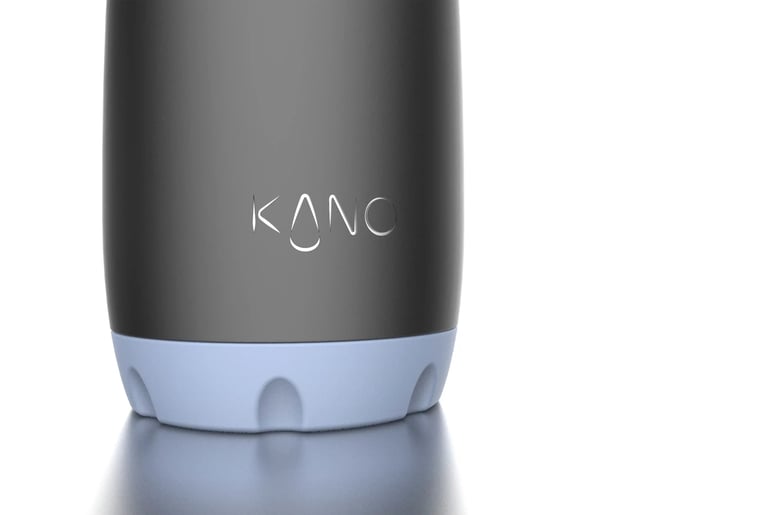

Logo etched with laser engraving

Logo & Slogan placement on the lid

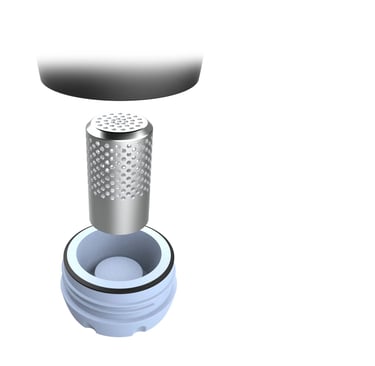

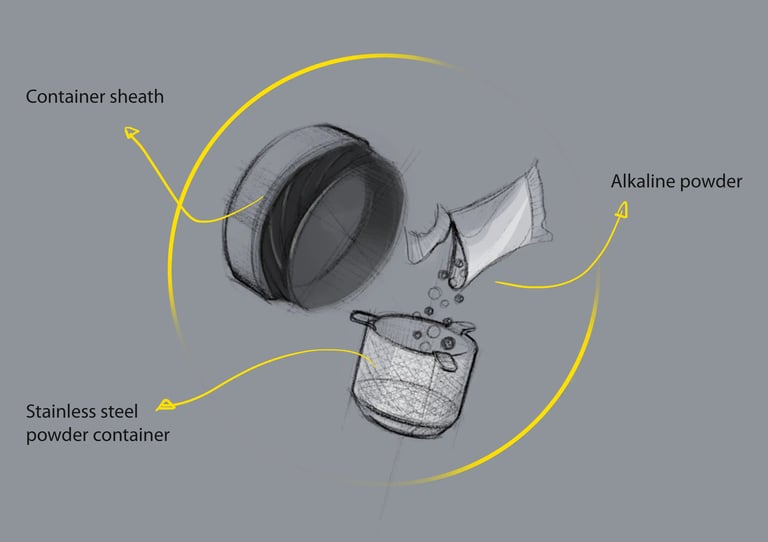

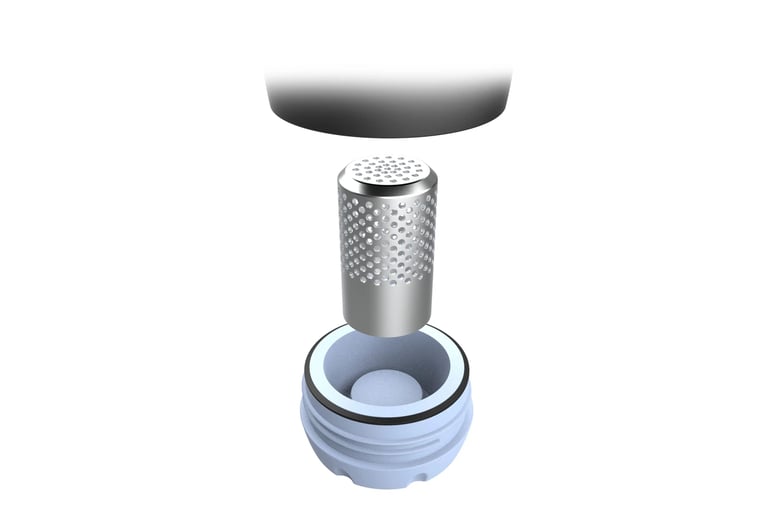

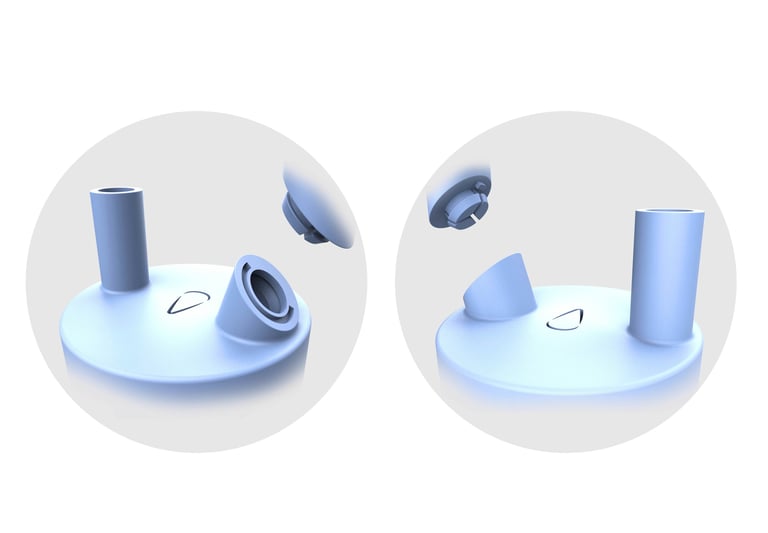

Alkaline storage in the bottom

Spout mechanism in open and close positions

Renders of further details of the bottle

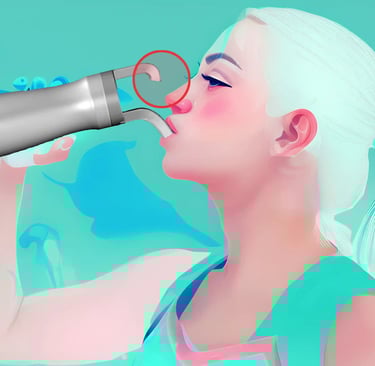

defining-the-spout-mechanism-problem-designed-by-koorosh-shojaei

defining-the-spout-mechanism-problem-designed-by-koorosh-shojaei

Detecting a problem in the design process and solving it with a clever solution

solving-the-spout-mechanism-problem-designed-by-koorosh-shojaei

solving-the-spout-mechanism-problem-designed-by-koorosh-shojaei

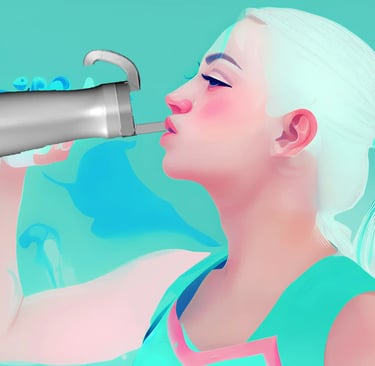

Spout collision with the nose while drinking

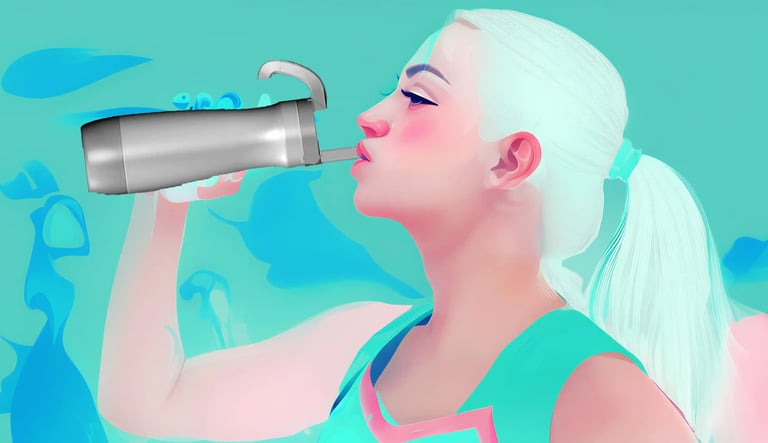

Redesign of the spout with a 45 degree opening angle

Problem

Solved

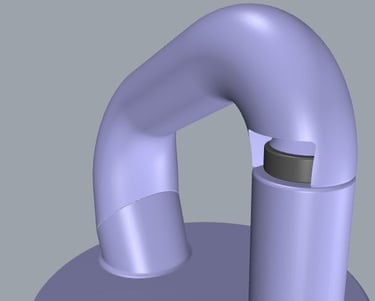

high-precision-3d-cad-model-of-the-alkaline-water-bottle-highlighting-the-engineered-spout-locking-m

high-precision-3d-cad-model-of-the-alkaline-water-bottle-highlighting-the-engineered-spout-locking-m

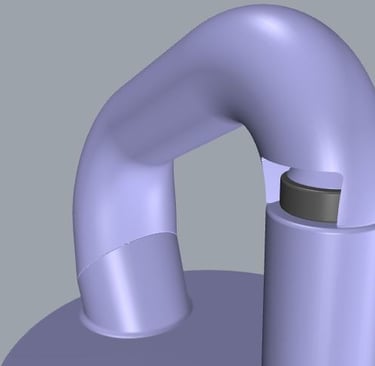

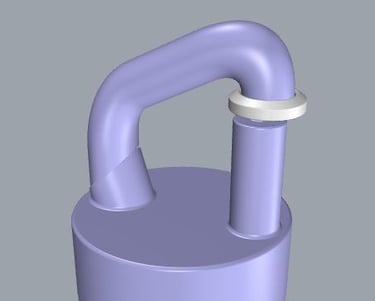

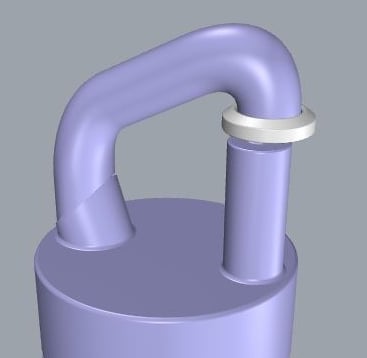

High accuracy modeling - Discovering various spout locking mechanisms

Solution A:

Friction lock with a rubber

Solution B:

Push down spring ring

Solution C:

Pull up locking ring

Solution D (Selected Solution):

Hiddel lock inside the spout

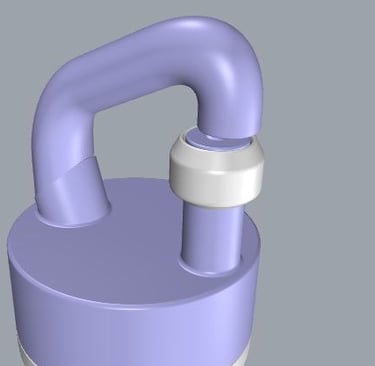

20210614_kano_revision_7

20210614_kano_revision_7

detailed-digital-modeling-phase-showcasing-the-functional-spout-lock-system-and-component-alignment-

detailed-digital-modeling-phase-showcasing-the-functional-spout-lock-system-and-component-alignment-

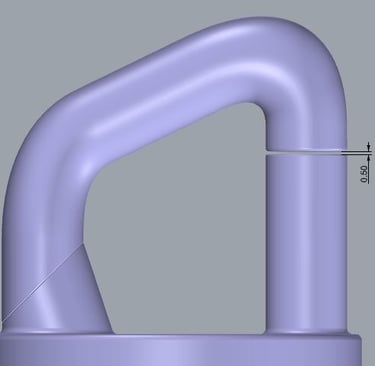

technical-3d-model-focusing-on-the-mechanical-structure-of-the-secure-spout-closure-designed-by-koor

technical-3d-model-focusing-on-the-mechanical-structure-of-the-secure-spout-closure-designed-by-koor

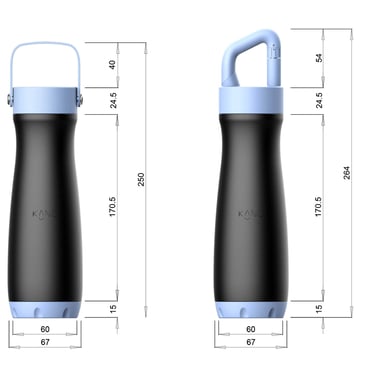

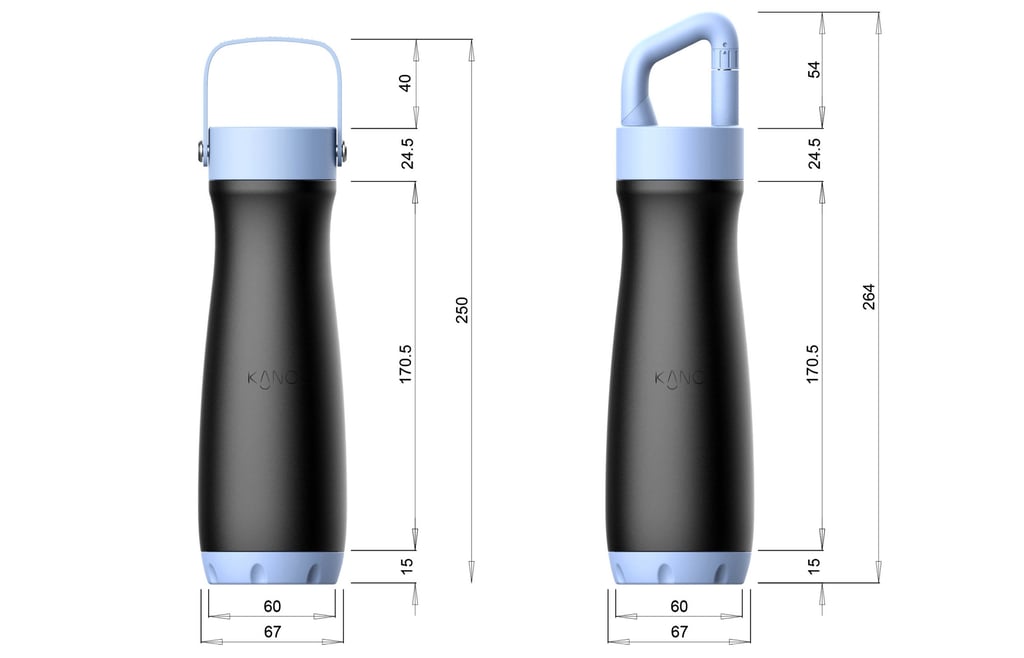

Final product design with dimensions in mm

technical-render-showing-overall-dimensions-and-bottle-typology-variations-of-the-unisex-alkaline-wa

technical-render-showing-overall-dimensions-and-bottle-typology-variations-of-the-unisex-alkaline-wa

Rubber handle lid

Hook spout

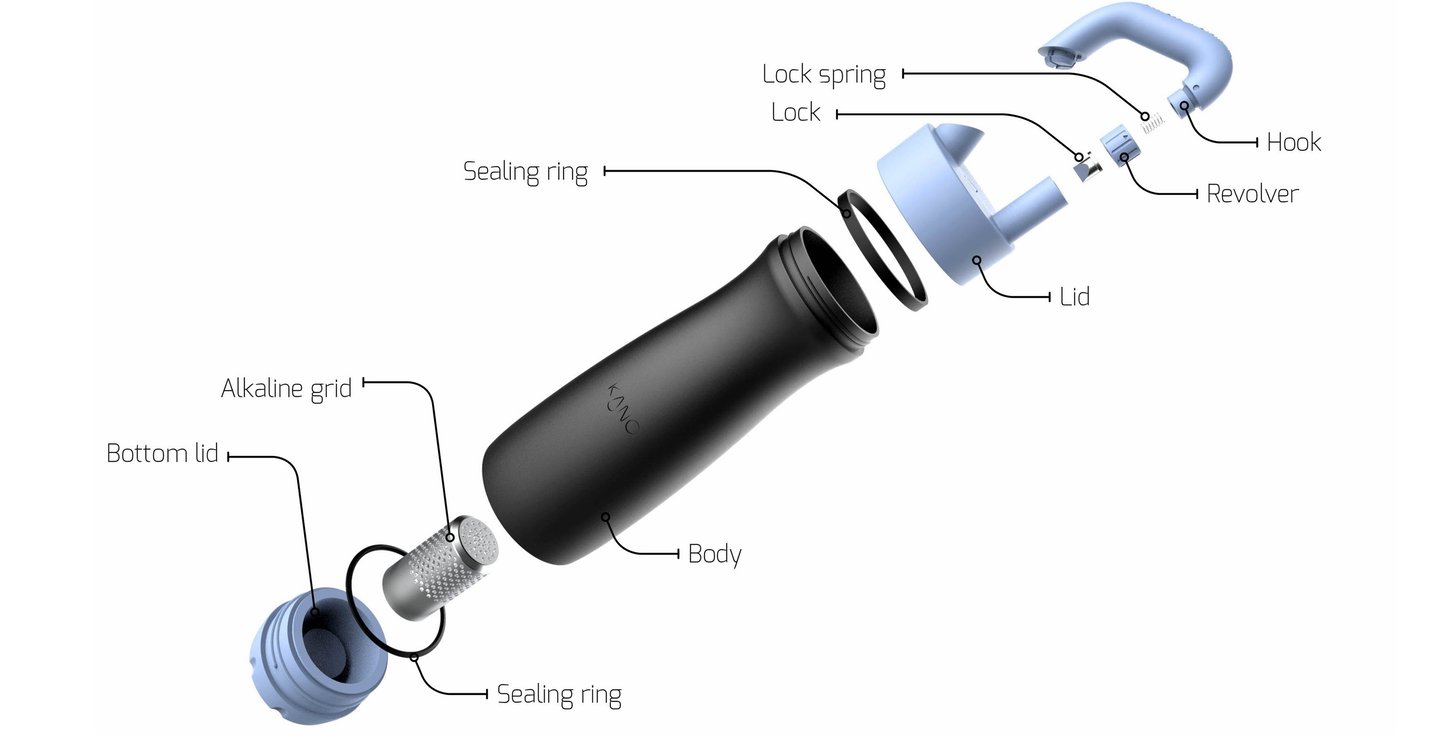

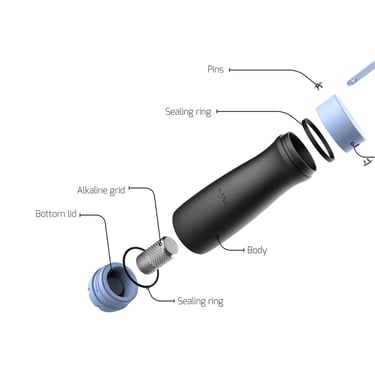

Exploded view of the bottle with "Hook Spout Lid"

technical-exploded-render-detailing-the-internal-cartridge-system-and-structural-assembly-logic-a-de

technical-exploded-render-detailing-the-internal-cartridge-system-and-structural-assembly-logic-a-de

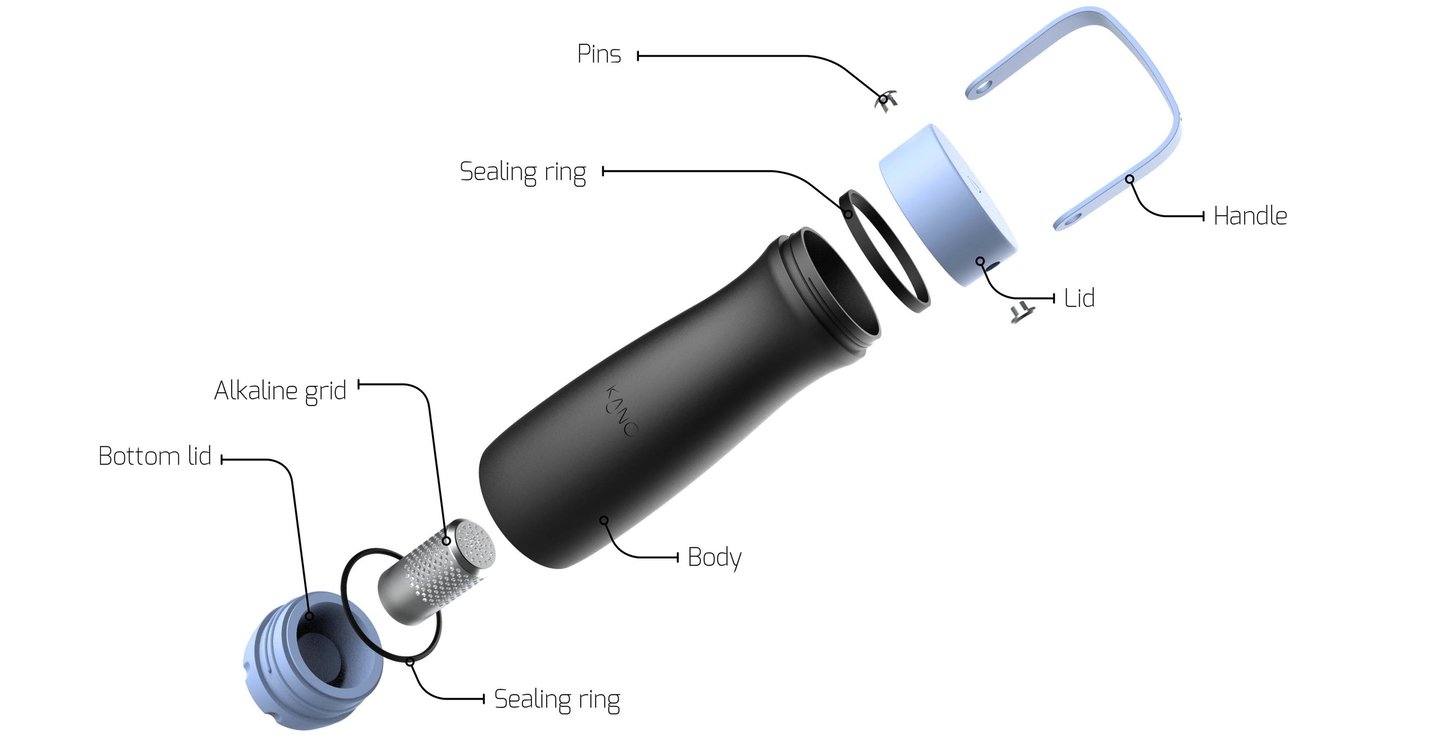

Exploded view of the bottle with "Rubber Handle Lid"

separated-component-visualization-showcasing-engineering-clarity-and-assembly-sequencing-a-designed-

separated-component-visualization-showcasing-engineering-clarity-and-assembly-sequencing-a-designed-

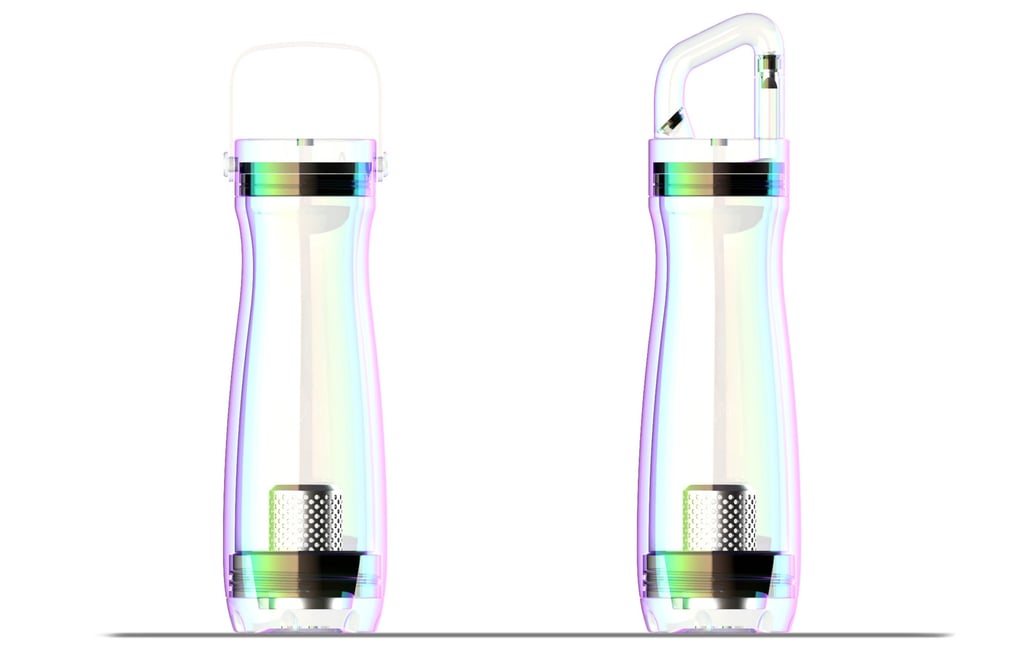

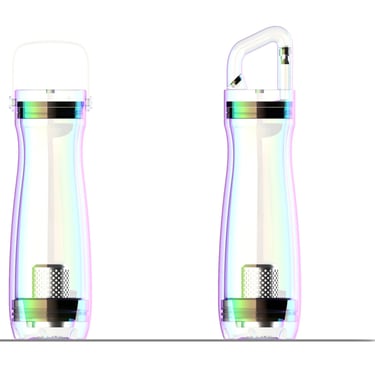

Ghosted views showcasing the inner components

ghosted-transparent-view-revealing-the-internal-alkaline-cartridge-system-and-spout-locking-mechanis

ghosted-transparent-view-revealing-the-internal-alkaline-cartridge-system-and-spout-locking-mechanis

Rubber handle lid

Hook spout

close-up-render-highlighting-the-precision-engineered-spout-locking-mechanism-and-tactile-detailing-

close-up-render-highlighting-the-precision-engineered-spout-locking-mechanism-and-tactile-detailing-

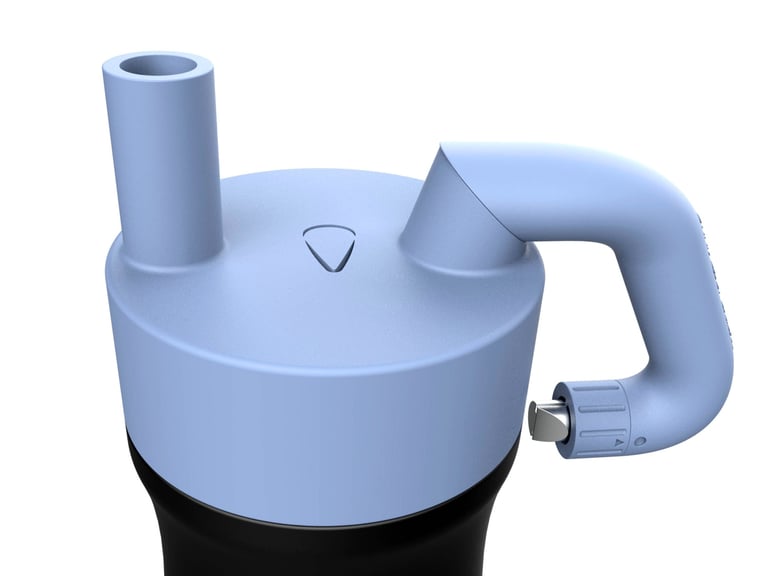

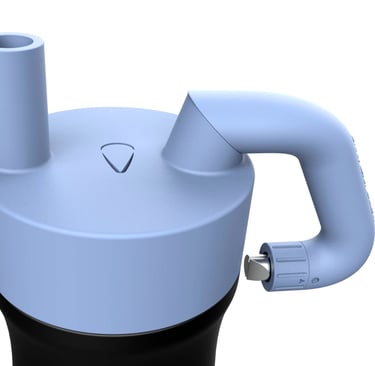

macro-render-of-the-cap-interface-showcasing-material-transitions-and-sealing-geometry-a-designed-by

macro-render-of-the-cap-interface-showcasing-material-transitions-and-sealing-geometry-a-designed-by

exploded-perspective-view-illustrating-the-layered-construction-of-cap-spout-alkaline-pack-and-body-

exploded-perspective-view-illustrating-the-layered-construction-of-cap-spout-alkaline-pack-and-body-

Detailed renders of the final product

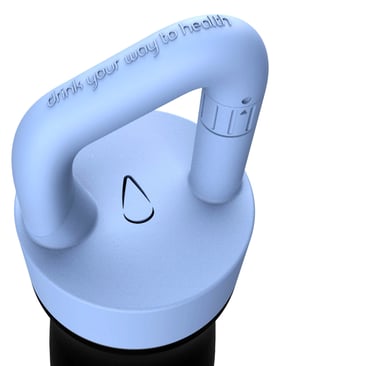

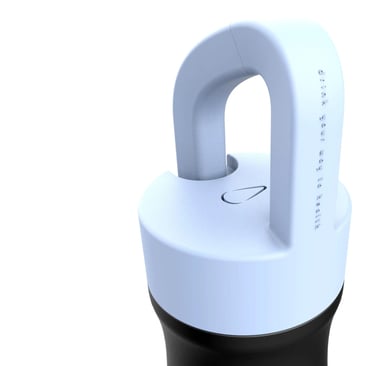

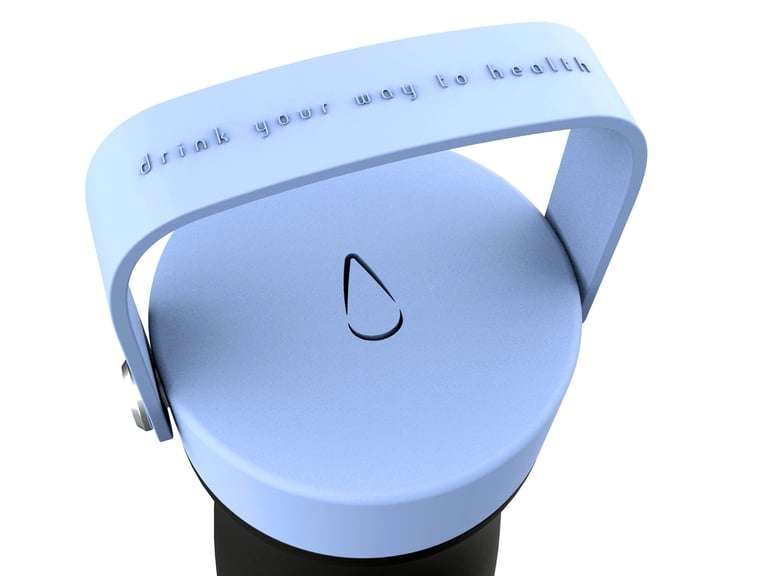

Logo on the lid & Slogan on the hook

45° Opened position of the hook

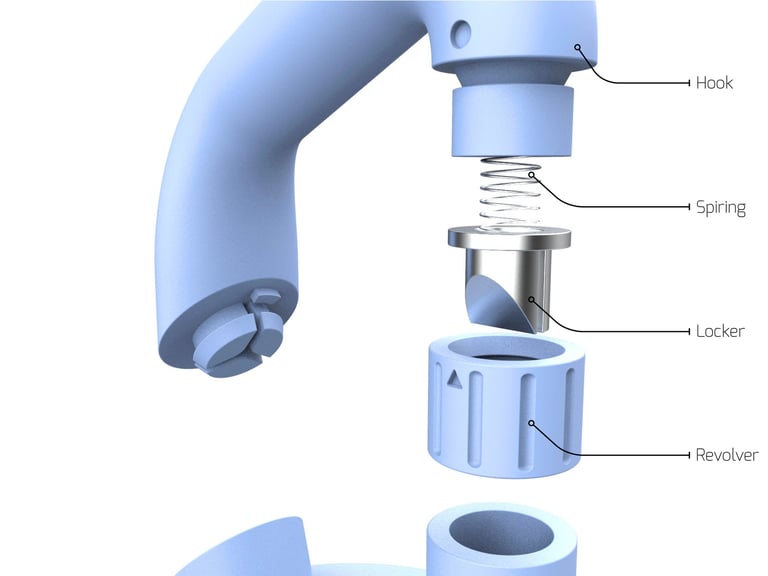

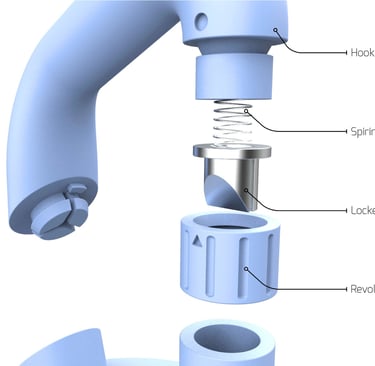

Hook components exploded view

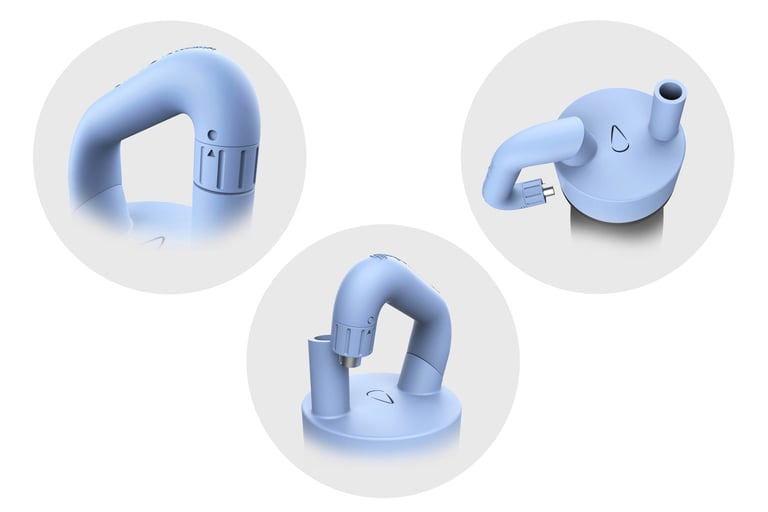

detailed-render-showcasing-the-precision-spout-locking-mechanism-with-visible-internal-geometry-and-

detailed-render-showcasing-the-precision-spout-locking-mechanism-with-visible-internal-geometry-and-

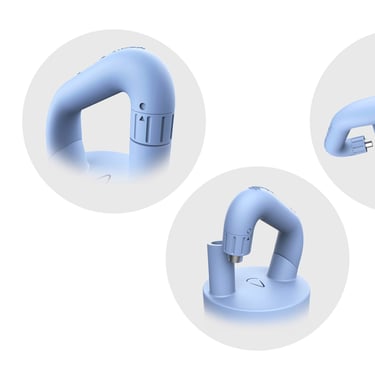

(A) Revolving the ring (B) Rotating the hook to unlock with a click sound (C) Hook's final position, thank to the blocker in the arm (D) Hook arm inner blocking rail (E) Hook arm triple horn locking tip

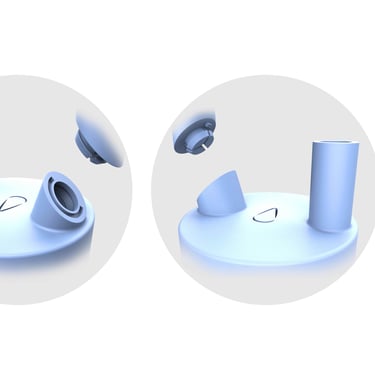

high-accuracy-close-up-render-revealing-the-engineered-refill-and-locking-system-with-refined-mechan

high-accuracy-close-up-render-revealing-the-engineered-refill-and-locking-system-with-refined-mechan

A

B

C

D

E

Hook locking mechanism

high-resolution-close-up-of-the-bottle-neck-construction-and-locking-interface-tolerances-a-designed

high-resolution-close-up-of-the-bottle-neck-construction-and-locking-interface-tolerances-a-designed

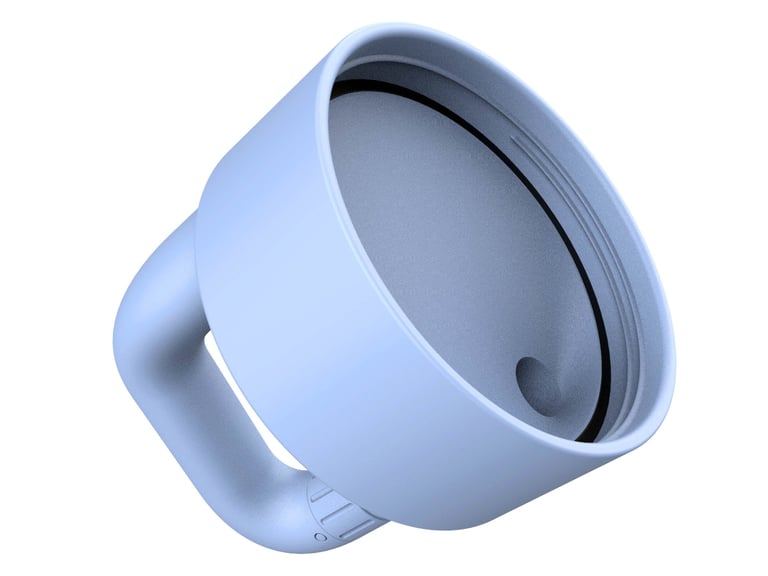

detailed-view-of-the-refill-mechanism-demonstrating-alignment-accuracy-and-mechanical-integration-a-

detailed-view-of-the-refill-mechanism-demonstrating-alignment-accuracy-and-mechanical-integration-a-

zoomed-render-emphasizing-surface-finish-quality-and-ergonomic-grip-refinement-a-designed-by-koorosh

zoomed-render-emphasizing-surface-finish-quality-and-ergonomic-grip-refinement-a-designed-by-koorosh

Detachable silicone handle for looping around objects

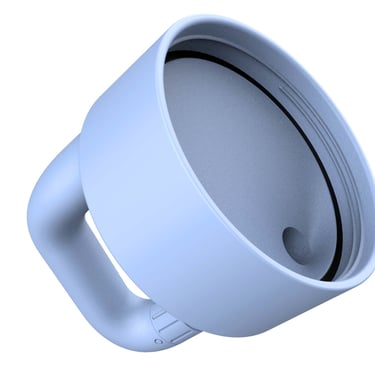

Funnel form of the upper lid for better water flow

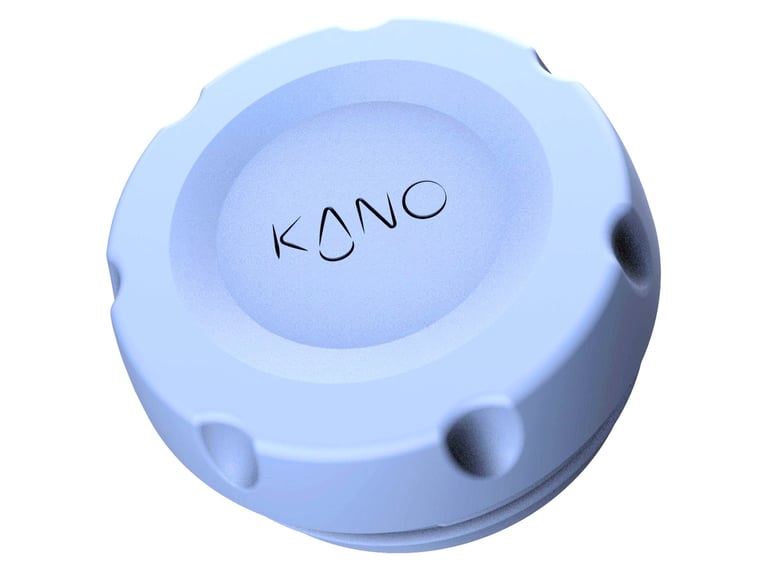

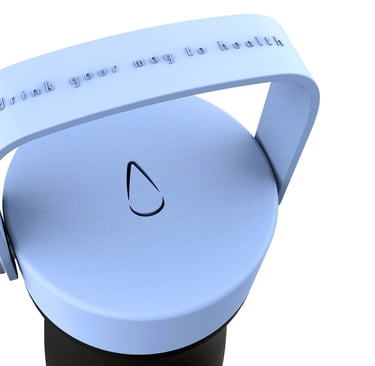

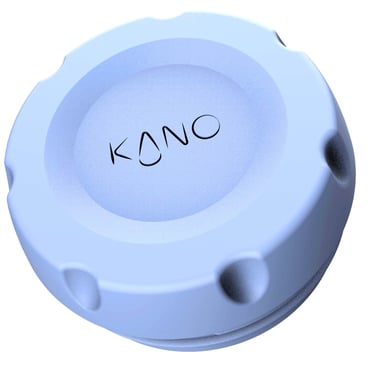

Logo placement on the bottom lid

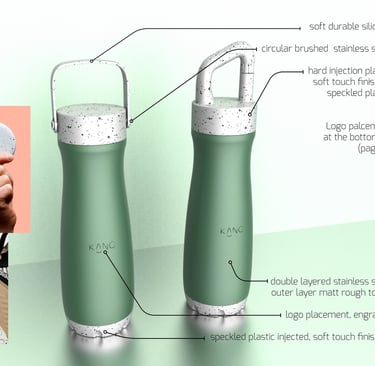

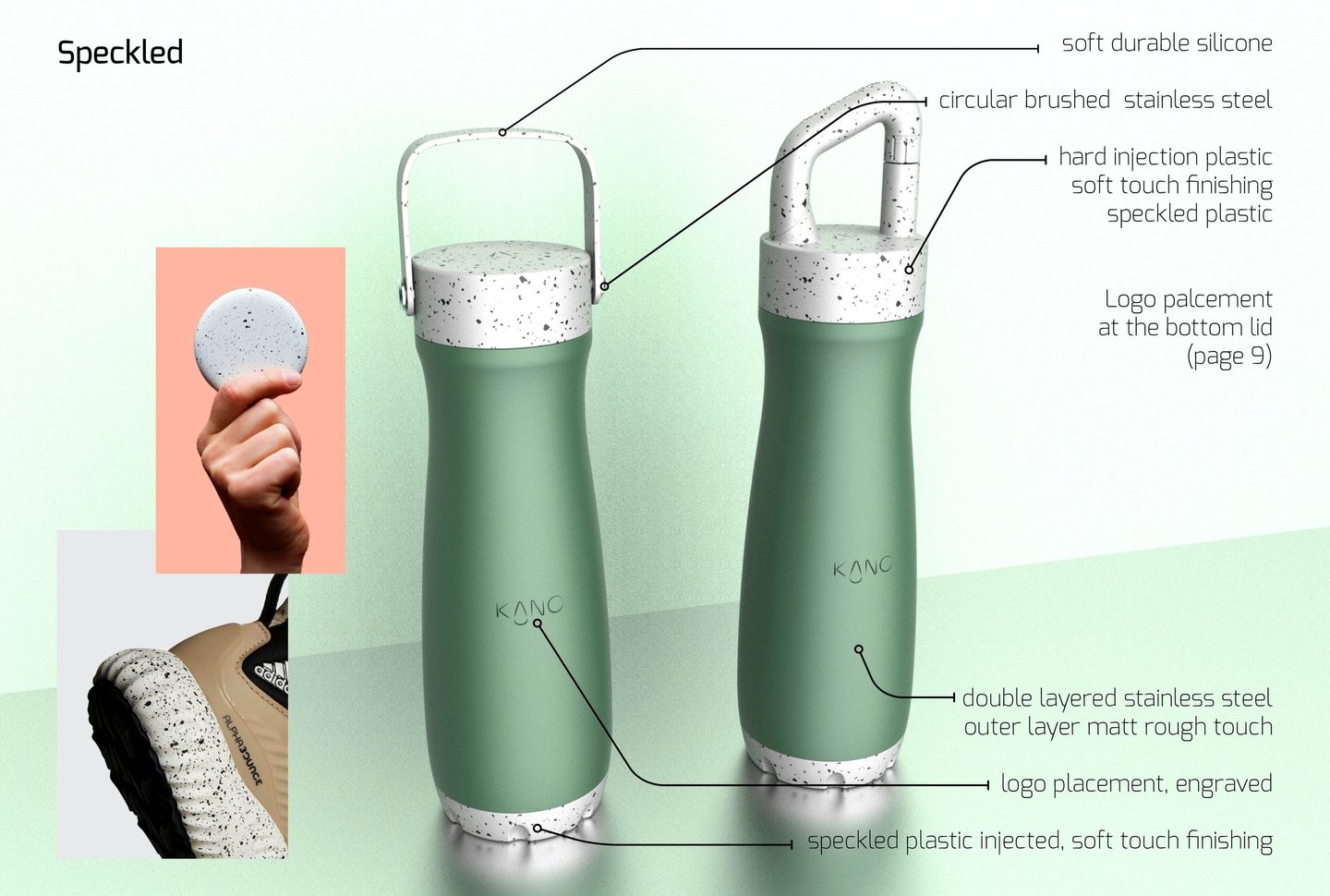

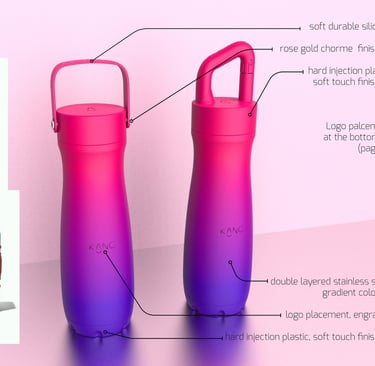

CMF Design - Variations of modern color & finishing

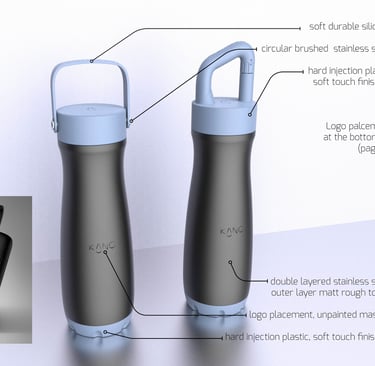

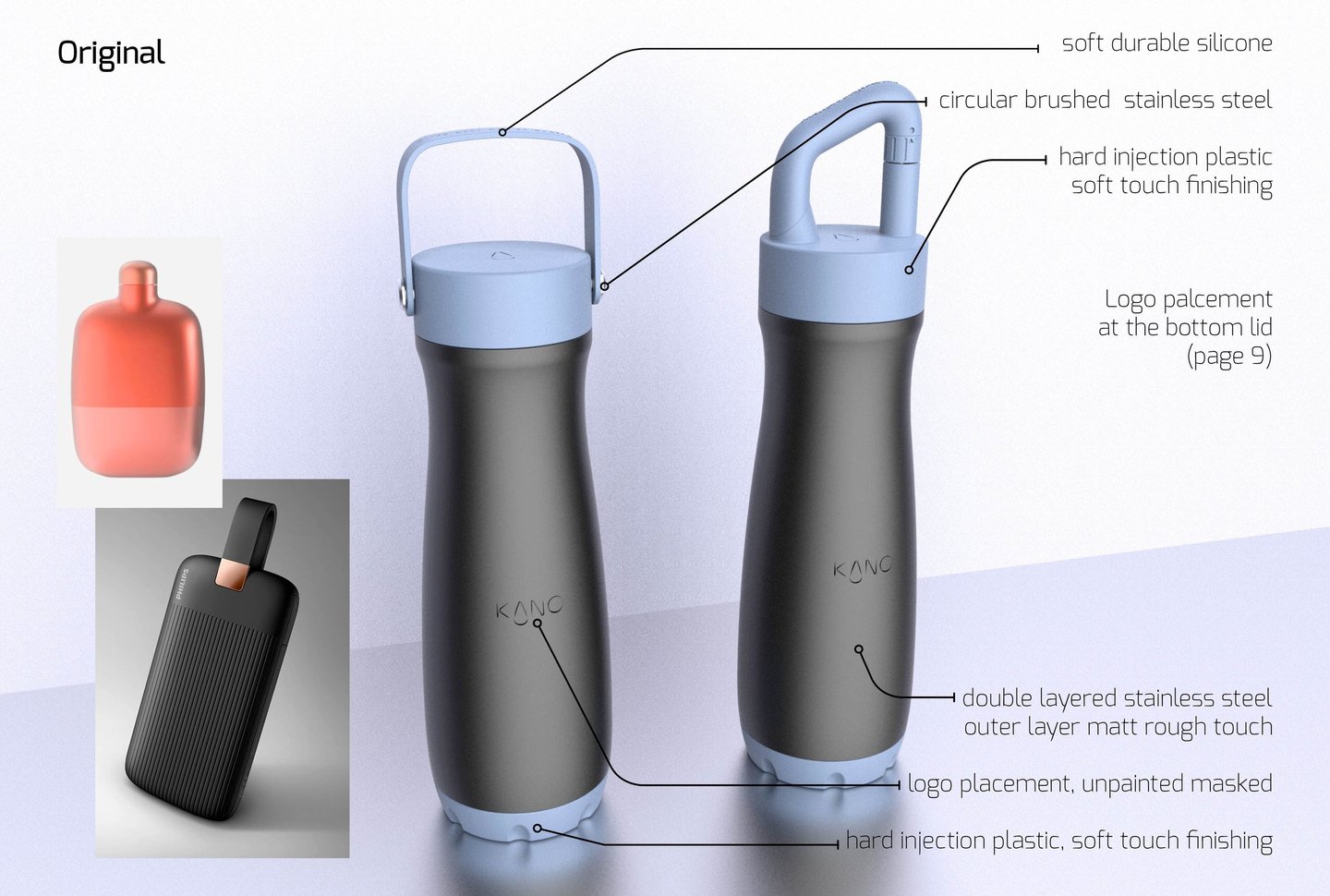

minimal-cmf-application-in-matte-neutral-tones-emphasizing-clean-aesthetics-and-lifestyle-positionin

minimal-cmf-application-in-matte-neutral-tones-emphasizing-clean-aesthetics-and-lifestyle-positionin

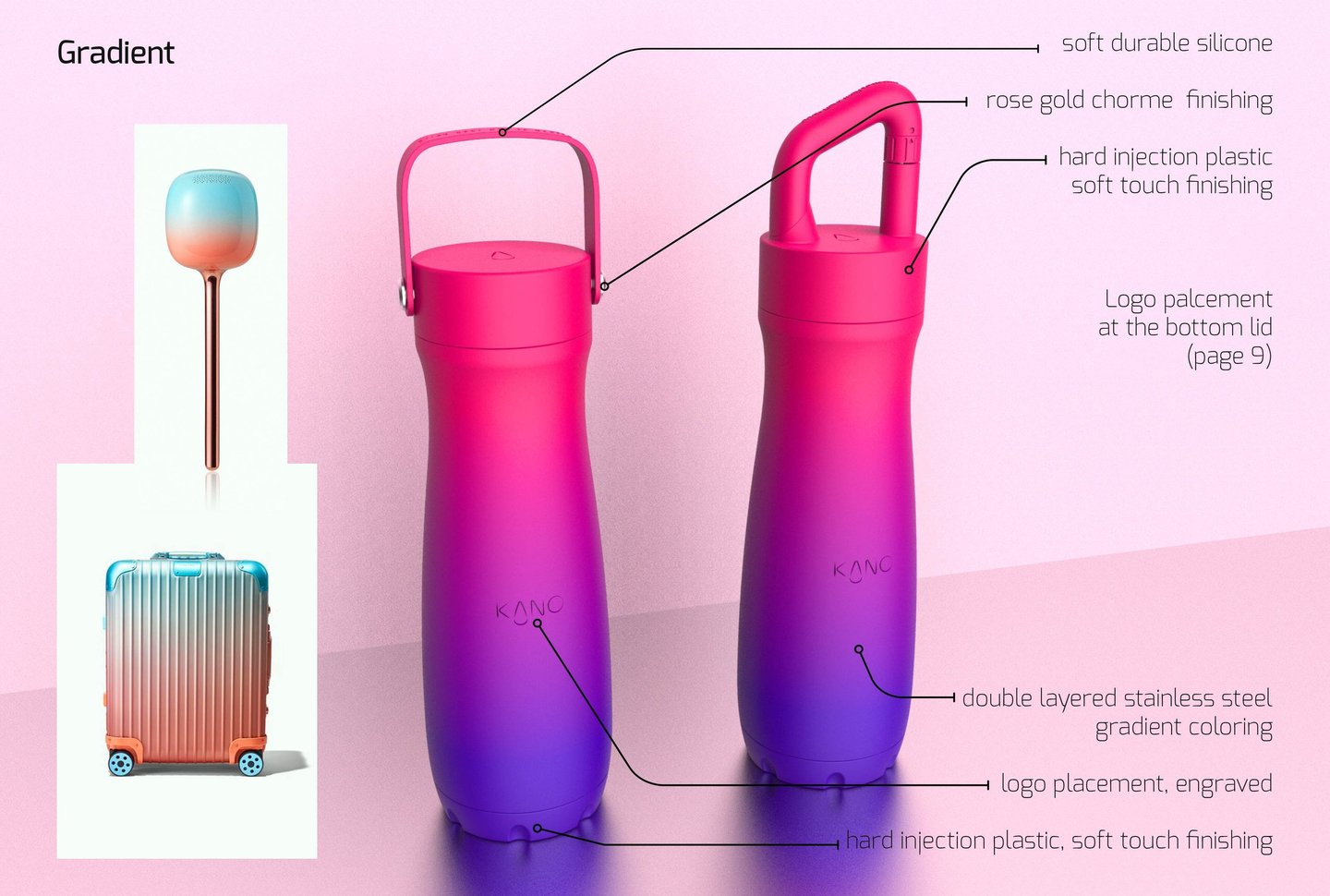

modern-cmf-exploration-combining-soft-touch-finishes-with-subtle-contrast-detailing-a-designed-by-ko

modern-cmf-exploration-combining-soft-touch-finishes-with-subtle-contrast-detailing-a-designed-by-ko

contemporary-color-and-material-study-highlighting-refined-textures-and-understated-premium-characte

contemporary-color-and-material-study-highlighting-refined-textures-and-understated-premium-characte
